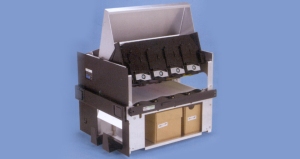

Printrex C930 Bulldog
Color Printer/Plotter for Well Logging



The Printrex C930 is the first full color log plotter designed for operation in a logging truck or offshore platform.

Rugged Reliability
Like a Bulldog, the C930 is solid.
 The C930 exhibits the same rugged reliability users have grown to expect and appreciate in Printrex black and white log plotters - the performance that has made Printrex the most widely used log plotter in the world.

Proven Technology
The C930 uses field proven thermal transfer technology to ensure reliability that would not be attainable using fragile laser based devices.

Four ribbons are used: cyan, yellow, magenta and black (CYMK). The use of the black ribbon produces crisp, black grid lines.

High Speed Plotting

  • 1.5 or 3 inches/second plot speed
  • 300 dots/inch horizontal & vertical

    Data Interface
    USB 2.0 and Ethernet are standard.

    		•

    Win 2K/XP Driver and User Interface Features

  • Print speed selection
  • Print intensity settings
  • DLA (Dot Line Adjust) for plot length
  • RLE/Delta Row Data Compression
  • Multiple copy capability
  • Paper empty and error reporting




    •

    Quick and Easy Ribbon Replacement

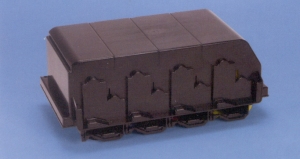

    A replaceable ribbon cassette holds the four thermal transfer ribbons. It takes only seconds to remove the spent cassette and slip the new one into place.

    Product Configurations
    Rack-Mounted and Desktop models are available. An output paper re-stacker basket is included.

    Power

  • Universal input power supply with IEC connector
  • 900 watts maximum

    Media
    Ribbon cassette capacity is 4,000 sheets of API format (6.25 x 9 inches).




    		•

    Physical Characteristics
    Rack mount size:
       19 inch rack x 17.5 inches high x 22 inches deep (48 x 44 x 56 cm)

    Desk top size:
       17 inches wide x 18 inches high x 22 inches deep (43 x 46 x 56 cm)

    Weight:
       Printer 60 pounds (27 kg)
       Ribbon Cassette 20 pounds (9 kg)
       Paper, box of 2,000 sheets 10 pounds (4.5 kg)

    Regulatory

  • CE for Safety and EMC
  • FCC Class A

    Environmental

  • Operating Temperature: +5C to +40C
  • Printer Storage Temperature: -10C to +50C
  • Ribbon Cassette Storage Temperature: -20C to +60C

    		•
